7000 Series Swivel

7000 Series Swivel

Versatility and Performance in Every Turn

Built for demanding environments, the 7000 Series Type 2 Swivel delivers unmatched reliability across a wide range of media. From water and steam to hot oil and chemicals, this swivel excels under diverse conditions, offering optimal performance for every application.

Categories: ,

7000 Series Swivel

Customizable and Built for Tough Applications

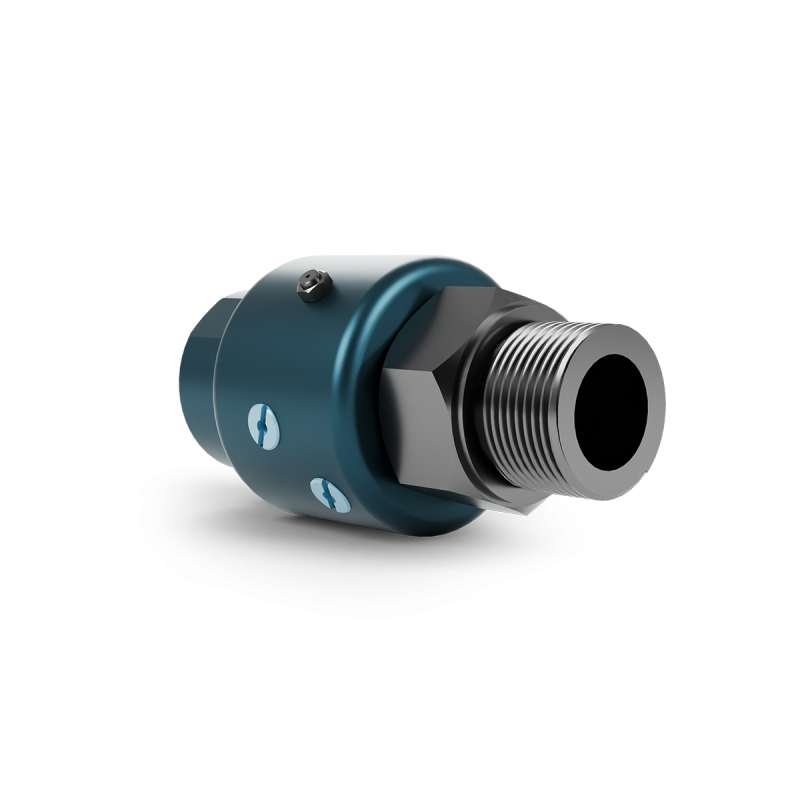

The 7000 Series Type 2 Swivel is engineered with a dual ball race design and deep-hardened ball races, ensuring smooth operation and extended durability, even under high pressure or temperature conditions. Manufactured in three configurations, this swivel is adaptable to fit various operational needs, making it ideal for industries that demand precision and reliability.

Seal options are tailored for specific applications, allowing for seamless operation with water, steam, hot oil, hydraulics, pneumatics, or virtually any liquid medium. Additionally, the 7000 Series offers flexible connection style alternatives to accommodate customer-specific requirements. With sizes ranging from 1/8″ (DN06) to 2″ (DN50), this swivel is the ultimate solution for both standard and customized setups.

Whether your operation requires a robust swivel for extreme temperatures or compatibility with aggressive chemicals, the 7000 Series Type 2 Swivel is built to exceed expectations.

Mediums

  • Water
  • Steam
  • Hot Oil
  • Hydraulics
  • Pneumatics
  • Chemicals
  • All Liquids
Maximum Pressure

Steel 420 bar (6100 psi), Stainless Steel 100 bar (1450 psi)

Max. Temperature

-50⁰C – 250⁰C (-58⁰F – 437⁰F)

Connection Style

Male & Female Threaded (BSP, NPT, etc.), Socket

7000 Series Swivel

Technical Specification
# AD A M D1 E F di D I H L1 L2 L3 L1 L2 L3
1 8 1/4″ M16x1.5 19 12 2 7 36 12 7 85 61 73 61 83 64
2 10 1/4″ M18x1.5 19 12 2 7 36 12 7.5 85 61 73 61 83 63.5
3 12 3/8″ M20x1.5 22 12 2 9 38 12 7 85 61 74 62 83 64
4 14 3/8″ M22x1.5 22 12 2 9 38 12 8 85 61 74 62 83 63
5 16 1/2″ M24x1.5 26 14 2 12 41 14 8.5 91.5 63.5 78.5 64.5 89.5 67
6 20 3/4″ M30x2 32 16 2 18 55 16 10.5 109 77 91 75 107 80
7 25 1″ M36x2 39 20 2 22 59 20 12 129 89 107 87 127 87
8 32 1 1/4″ M42x2 48 20 2 30 73 20 13.5 129 89 111 91 127 93
9 40 1 1/2″ M50x2 52 20 2 32 74 20 16 141 101 119 99 141 104
# AD A M L7 L8 L9 L10 L11 L12 L13 L14 L15 L16 L17 Z1 Z2
1 8 1/4″ M16x1.5 72.5 48.5 60.5 70.5 63.5 83 64 71 63.5 81 66 22 22
2 10 1/4″ M18x1.5 72.5 48.5 60.5 70.5 63 83 63.5 71 63 81 65 22 22
3 12 3/8″ M20x1.5 72.5 48.5 61.5 70.5 63.5 83 63.5 72 64.5 81 66.5 25 22
4 14 3/8″ M22x1.5 72.5 48.5 61.5 70.5 62.5 83 63 72 64 81 65 25 22
5 16 1/2″ M24x1.5 78 50 2 76 67.5 89.5 67 76.5 68 87.5 70.5 28 27
6 20 3/4″ M30x2 93 61 2 91 80.5 109 82 91 80.5 107 86 32 32
7 25 1″ M36x2 109 69 2 107 95 127 95 105 93 125 10 41 41
8 32 1 1/4″ M42x2 113 73 2 111 97 129 95 111 97 127 100 50 50
9 40 1 1/2″ M52x2 119 79 2 118 102 141 105 119 103 140 108 55 55
# AD A M D J K L18 L19 L20 L21 L22 L23 Z1 Z2
1 8 1/4″ M16x1.5 36 16 10 68 44 68 56 78 59 22 22
2 10 1/4″ M18x1.5 36 16 10 68 44 68 56 78 58.5 22 22
3 12 3/8″ M20x1.5 38 16 9 80 66 69 55 78 57 81 22
4 14 3/8″ M22x1.5 38 16 9 80 66 69 55 78 56 81 22
5 16 1/2″ M24x1.5 41 17.5 10 93 64 80 65 91 68 28 27
6 20 3/4″ M30x2 55 24 14 109 89 91 75 107 76 32 32
7 25 1″ M36x2 64 27.5 16 133 88 111 86 131 94 41 41
8 32 1 1/4″ M42x2 73 29.5 16 141 94 123 96 139 98 50 50
9 40 1 1/2″ M52x2 74 28 20 157 104 135 102 155 139 55 55
