Penlink > Products > Inertial Sensors > Gyroscope > A-Series Gyroscopes

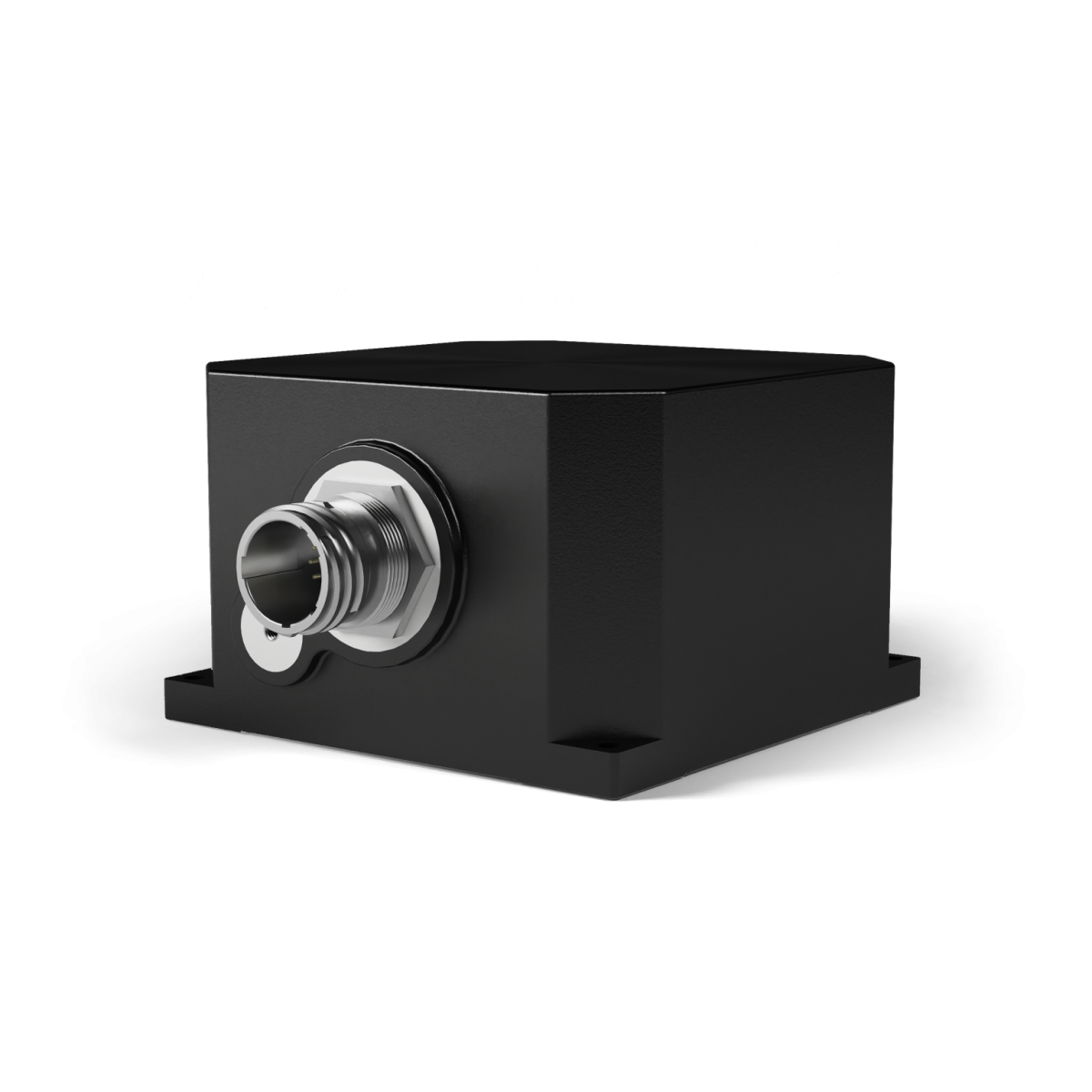

A-Series Gyroscopes

A-Series Gyroscopes

Best In Class Tactical Grade

The A-Series is a 3-axis CVG Gyroscope with digital output, which allows the user to make accurate measurements of three orthogonal rate rotations (roll, pitch, and yaw).

Categories: Gyroscope, Inertial Sensors
  • Description
  • Specifications

A-Series

Best In Class Tactical Grade Performance

It is suitable for many applications requiring tactical performance, very low noise, and high MTBF in a compact design coupled with low power consumption.

Applications

The GI-CVG-A23XXD is applicable in many demanding applications.

  • Platform Stabilisation
  • Platform Stabilisation
  • Commercial Ship Navigation/Gyrocompass
  • GPS Aiding for positioning systems in high-precision agriculture and mapping
  • Stabilizations of survey instruments
  • Flight control and navigation for Medium-to-Large UAV’s
  • Flight Control for Helicopters and Aircraft
Relevant Documents

Penlink Design Slip Rings for Large Offshore Cranes

Inertial Sensor Solutions For Precision And Real-time Data

Structural Health Monitoring

A-Series

Technical Specification



Performance
Input rate measurement unit +/- 160°/s
Bias in-run 0.3°/hr (1 σ)
ARW 0.01 °/√hr typical
Bandwidth -(-3dB) > 300Hz
Electrical Interface
Turn on time 1 sec
Output signal format RS422 Asynchronous
Built-in self-test Yes
Output signal update rate 2KHz
Output signal baud rate 1 MBaud
Physical Specifications
Power supply 28V
Connector (13 pins) MIL-DTL-38999 Series III
Power consumption ≤ 6W
MTBF (per MIL-HDBK-217-F) > 500,000hr
Weight ≤ 1.3kg

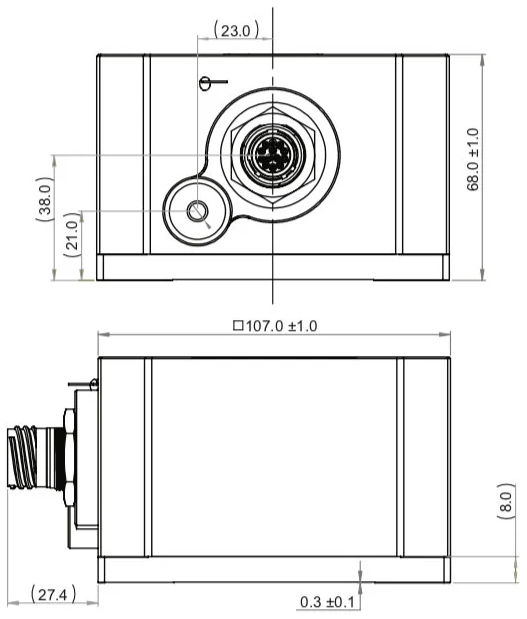

Envelope 107mm x 107mm x 68 mm
