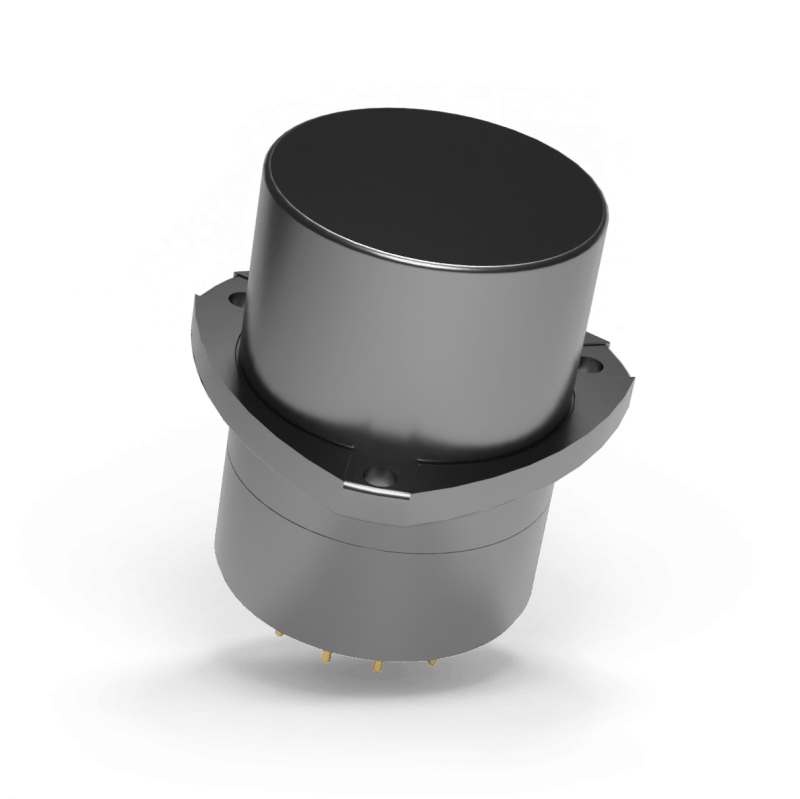

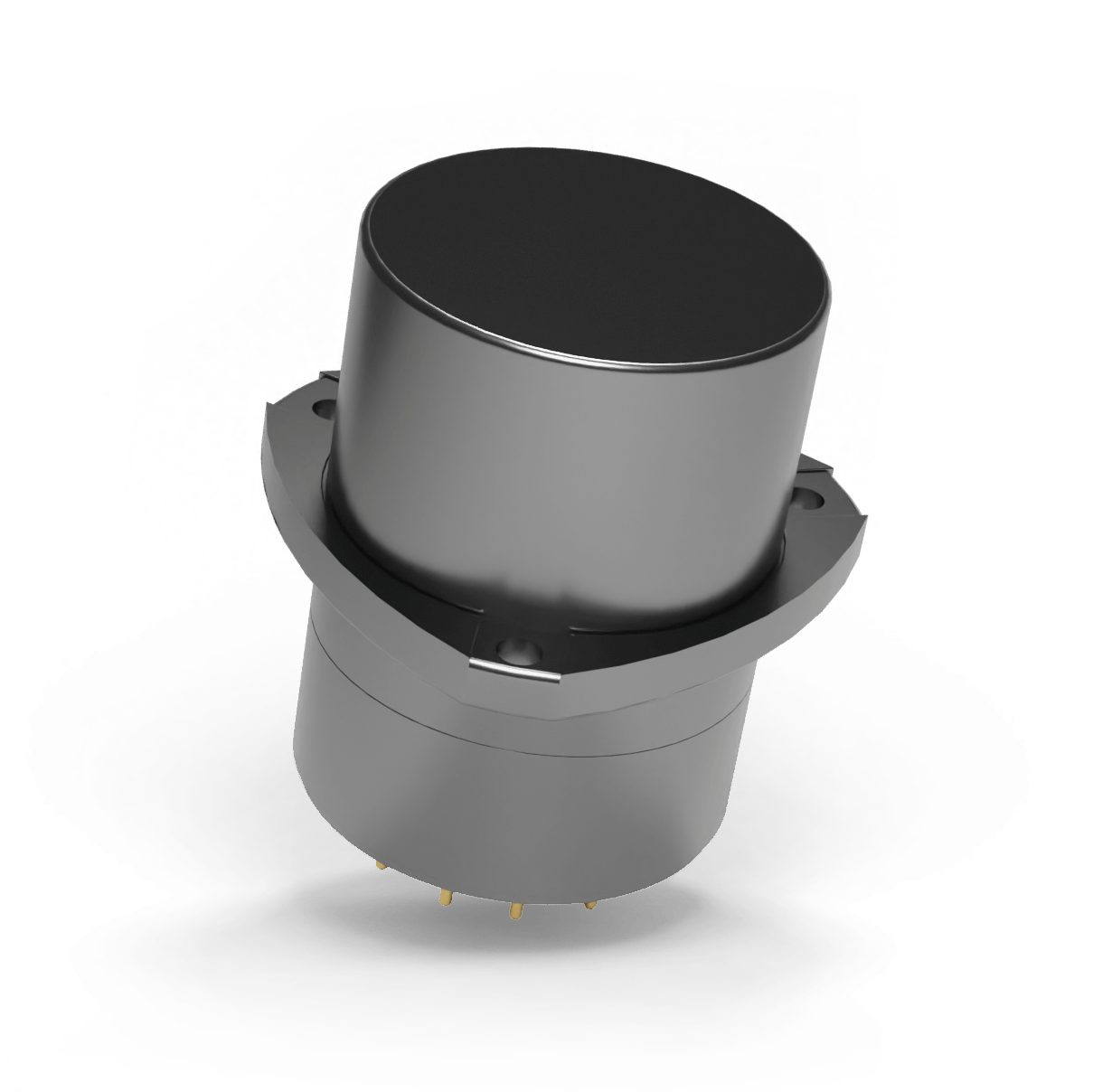

AI-Q-560 Accelerometer

AI-Q-560 Accelerometer

Miniature, High-Precision Accelerometer for Tactical Systems

The AI-Q-560 is a miniature, control-grade accelerometer designed for high-dynamic and precision systems.

Built with Quartz Flexure technology, it provides exceptional stability, long-term repeatability, and tactical-grade performance in a compact and rugged form factor.

Categories: Accelerometers, Industrial Grade Accelerometers, Inertial Sensors
  • Description
  • Specifications

AI-Q-560 Accelerometer

Miniature Accelerometer for High-Dynamic & Precision Systems

The AI-Q-560 accelerometer leverages InnaLabs® Quartz Flexure technology to offer control-grade, tactical performance in a miniature, rugged design.

With a measurement range of ±15g and excellent long-term repeatability of <1mg and 600ppm (one-year repeatability), the AI-Q-560 ensures precision and reliability even in demanding environments. The sensor features high thermal stability and an internal temperature sensor for thermal compensation, ensuring consistent performance across temperature variations.

Its analogue current output facilitates integration into various systems, making it an optimal solution for high-accuracy commercial Inertial Measurement Units (IMUs) and other precision applications where space is limited.

Key Performance

  • <1mg and 600ppm (one-year repeatability)
  • Input Range: ±15 g
  • High thermal stability
  • Internal temperature sensor for thermal compensation
  • Analogue current output
  • Compact, rugged design
  • Miniaturized sensor
Applications

Due to its miniature size, the AI-Q-560 is ideal for a wide range of modern, high-tech and precision-guided systems.

  • Land, Air and Sea Inertial Navigation Systems
  • Inertial Measurement Systems
  • Attitude & Heading Reference Systems
  • Robotic systems
  • Structural Health & Maintenance Monitoring
Relevant Documents

Penlink Design Slip Rings for Large Offshore Cranes

Inertial Sensor Solutions For Precision And Real-time Data

Structural Health Monitoring

AI-Q-560 Accelerometer

Technical Specification



Performance Unit Value
Input Range g ±15
Bias mg ≤4
One-year Composite Repeatability mg ≤1
Temperature Sensitivity µg/°C ≤50
Scale Factor mA/g 0.65 to 0.85
One-year Composite Repeatability ppm ≤600
Temperature Sensitivity ppm/°C ≤100
Axis Misalignment µrad ≤1,500
Vibration Rectification µg/g² RMS ≤25 (50-200 Hz) ≤50 (200-750 Hz) ≤100 (750-2,000 Hz)
Intrinsic Noise µg RMS ≤7 (0-10 Hz) ≤70 (10-500 Hz) ≤1,500 (500-10,000 Hz)
Environment Unit Value
Operating Temperature °C -55 to +105
Shock (survival) g 250
Vibration Peak Sine g, Hz 35 peak
Resolution/Threshold µg ≤1
Bandwidth Hz ≥300
Temperature Model Yes
Electrical Unit Value
Quiescent Current per Supply mA ≤6
Quiescent Power @±15VDC mW ≤180
Input Voltage VDC ±13 to ±18
Physical Unit Value
Mass gm 31.4
Diameter mm Ø 18.2
Height mm 11.3
