Products

Penlink > Products > Servo Components > Standard Servo Drives > Capitan Serie
Capitan Serie

Capitan Serie

Designed For The Most Demanding Applications

Capitan Series offers CANOpen and EtherCAT communications with a bus latency down to 2 cycles. A high-speed SPI bus communication is also available for optimized EtherCAT/CANopen multi-axis architectures.

Categories: Standard Servo Drives, Servo Components
  • Description
  • Specifications

Servo Drives Designed For The Most Demanding Motion Control Applications

Capitan Series offers CANOpen and EtherCAT communications with a bus latency down to 2 cycles. A high speed SPI bus communication is also available for optimized EtherCAT/CANopen multi-axis architectures. For applications where performance is critical, Capitan Series offers the best-in-class efficiency along with optimal performance and latency that maximizes system responsiveness.

With just 8 mm height and 18 g weight, Capitan Series offers integration capabilities that exceed expectations.

Quick Specification
Specification
Continuous Current 10 A
Peak Current 20 A (3s)
Efficiency 99 %
Functional Safety STO SIL3 Ple
World Class Components

Capitan Series Features

Multiple Integration Options

Ready-to-use Capitan XCR allows quick system start-up. The pluggable module, Capitan NET and Capitan CORE, allow easy integration into carrier boards.

Safety First

Capitan has been designed to meet industrial functional safety standards to ensure continuous operation safety. STO inputs are integrated, rated to SIL-3 PLe.

Ultra-Compact Design

The Capitan footprint has been minimized to an extremely low profile, resulting in a lightweight design.

Best-in-class Servo Performance

Fast current and servo loops, with PWM frequencies up to 200 kHz delivering best-in-class performance.

Superior Power Management

Efficiency up to 99% due to state-of-the-art power stage and standby power consumption down to 1.12 W, the Capitan Series sets a new standard for servo drive power management.

Demanding Multi-Axis Applications

Capitan supports EtherCAT with a bus latency down to 2 cycles. Support for CANopen and high-speed SPI bus communication is available.

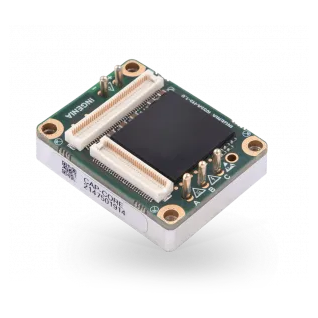

Capitan CORE

The Capitan NET series includes ultra-compact, high power density servo drives optimized for multi-axis architectures. The pluggable design is ideal for carrier boards, enabling easy integration in various applications such as end-effector actuators, surgical robot joints, exoskeletons, gimbals, and haptic applications.

Both versions feature the most advanced transistor technology, offering the highest power density and efficiency with PWM frequencies up to 200 kHz, while maintaining negligible EMI. Detailed design information and circuitry necessary for integration into the carrier PCB are provided in the product manual.

Specification CAP-CORE
Communication SPI
Standby Power Consumption 1.12 W
Analog Input 2x 3.3 V Differential Analog Input 16 bits
Dimensions 34.5 mm x 26 mm x 10.3 mm

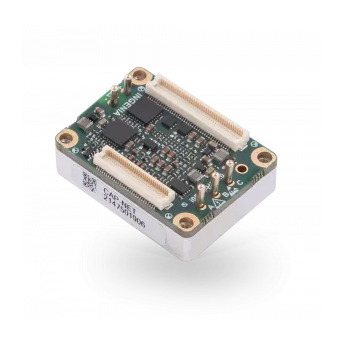

Capitan NET

The Capitan NET series includes ultra-compact, high power density servo drives optimized for multi-axis architectures. The pluggable design is ideal for carrier boards, enabling easy integration in various applications such as end-effector actuators, surgical robot joints, exoskeletons, gimbals, and haptic applications.

Both versions feature the most advanced transistor technology, offering the highest power density and efficiency with PWM frequencies up to 200 kHz, while maintaining negligible EMI. Detailed design information and circuitry necessary for integration into the carrier PCB are provided in the product manual.

Specification CAP-NET-E CAP-NET-C
Communication EtherCAT CANopen
Standby Power Consumption 1.28 W
Analog Input 2x 3.3 V Differential Analog Input 16 bits
Dimensions 34.5 mm x 26 mm x 10.3 mm

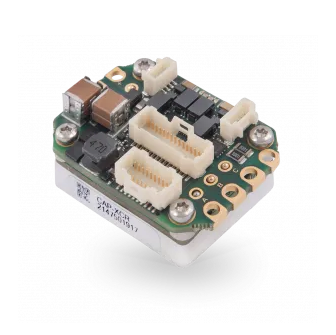

Capitan XCR

The Capitan XCR series includes ultra-compact, high power density servo drives optimized for various applications such as compact robotic joints, flat actuators, end-effector actuators, surgical robots, exoskeletons, gimbals, and haptic applications.

The drives are designed with the most advanced transistor technology, delivering the highest power density and efficiency with PWM frequencies up to 200 kHz, while maintaining negligible EMI for best-in-class performance.

Specification CAP-XCR-E CAP-XCR-C
Communication EtherCAT CANopen
Standby Power Consumption 1.5 W – 2.1 W
Analog Input 1x -10..10 V Differential Analog Input 16 bits
Dimensions 42 mm x 29 mm x 19.4 mm

Capitan Series

Technical Specification



Part Number CAP-CORE
Continuous Current 10 A
Peak Current 20 A (3s)
Supply Voltage Power: 5-60 Vdc | Logic: 4.9-5.1 Vdc
Efficiency 99 %
Standby power consumption 1.12 W
PWM Switching Frequency 20 kHz, 50 kHz, 100 kHz, 200 kHz
Supported Motor Types DC Brushed, Rotary Brushless
Supported Feedbacks Digital Halls, Digital Incremental Encoder, BiSS-C, Dual BiSS-C, Dual BiSS-C Daisy Chained, BiSS-C and SSI, SSI, Dual SSI
IO Input 4x 3.3 V Single Ended Digital Input
Output 4x 3.3 V Single Ended Digital Output
Analog Input 2x 3.3 V Differential Analog Input 16 bits
Communications SPI
Supported Motion Modes Profile Position, Profile Velocity, Cyclic Sync Position, Cyclic Sync Velocity, Cyclic Sync Torque, Homing
Dimensions 34.5 mm x 26 mm x 10.3 mm
Weight 18 gr
Functional Safety STO SIL3 PLe
Connectors Pinout 100% compatible with Everest CORE
Part Number CAP-NET-E
Continuous Current 10 A
Peak Current 20 A (3s)
Supply Voltage Power: 5-60 Vdc | Logic: 4.9-4.1 Vdc
Efficiency 99 %
Standby power consumption 1.28 W
PWM Switching Frequency 20 kHz, 50 kHz, 100 kHz, 200 kHz
Supported Motor Types DC Brushed, Rotary Brushless
Supported Feedbacks Digital Halls, Digital Incremental Encoder, BiSS-C, Dual BiSS-C, Dual BiSS-C Daisy Chained, BiSS-C and SSI, SSI, Dual SSI
IO Input 4x 3.3 V Single Ended Digital Input
Output 4x 3.3 V Single Ended Digital Output
Analog Input 2x 3.3 V Differential Analog Input 16 bits
Communications EtherCAT
Supported Motion Modes Profile Position, Cyclic Sync Position, Cyclic Sync Velocity, Cyclic Sync Torque, Homing
Dimensions 34.5 mm x 26 mm x 10.3 mm
Weight 18 gr
Functional Safety STO SIL3 PLe
Connectors Pinout 100% compatible with Everest NET
Part Number CAP-NET-C
Continuous Current 10 A
Peak Current 20 A (3s)
Supply Voltage Power: 5-60 Vdc | Logic: 4.9-5.1 Vdc
Efficiency 99 %
Standby power consumption 1.28 W
PWM Switching Frequency 20 kHz, 50 kHz, 100 kHz, 200 kHz
Supported Motor Types DC Brushed, Rotary Brushless
Supported Feedbacks Digital Halls, Digital Incremental Encoder, BiSS-C, Dual BiSS-C, Dual BiSS-C Daisy Chained, BiSS-C Daisy Chain, BiSS-C and SSI, SSI, Dual SSI
IO Input 4x 3.3 V Single Ended Digital Input
Output 4x 3.3 V Single Ended Digital Output
Analog Input 2x 3.3 V Differential Analog Input 16 bits
Communications CANopen
Supported Motion Modes Profile Position, Cyclic Sync Position, Cyclic Sync Velocity, Cyclic Sync Torque, Homing
Dimensions 34.5 mm x 26 mm x 10.3 mm
Weight 18 gr
Functional Safety STO SIL3 PLe (certification pending)
Connectors Pinout 100% compatible with Everest NET
Part Number CAP-XCR-E
Continuous Current 10 A
Peak Current 20 A (3s)
Supply Voltage Power: 8-60 Vdc | Logic: 8-50 Vdc
Efficiency 99 %
Standby power consumption 1.5 W – 2.1 W
PWM Switching Frequency 20 kHz, 50 kHz, 100 kHz, 200 kHz
Supported Motor Types DC Brushed, Rotary Brushless
Supported Feedbacks Digital Halls, Digital Incremental Encoder, BiSS-C, Dual BiSS-C, Dual BiSS-C Daisy Chained, BiSS-C and SSI, SSI, Dual SSI
IO Input 4x 5 V Single Ended Digital Input
Output 4x 5 V Single Ended Digital Output
Analog Input 1x -10..10 V Differential Analog Input 16 bits
Communications EtherCAT
Supported Motion Modes Profile Position, Profile Speed, Profile Torque, Cyclic Sync Position, Cyclic Sync Velocity, Cyclic Sync Torque, Homing
Dimensions 42 mm x 29 mm x 19.4 mm
Weight 28 gr
Functional Safety STO SIL3 PLe (TÜV certified)
Part Number CAP-XCR-C
Continuous Current 10 A
Peak Current 20 A (3s)
Supply Voltage Power: 8-60 Vdc | Logic: 8-50 Vdc
Efficiency 99 %
Standby power consumption 1.5 W – 2.1 W
PWM Switching Frequency 20 kHz, 50 kHz, 100 kHz, 200 kHz
Supported Motor Types DC Brushed, Rotary Brushless
Supported Feedbacks Digital Halls, Digital Incremental Encoder, BiSS-C, Dual BiSS-C, Dual BiSS-C Daisy Chained, BiSS-C and SSI, SSI, Dual SSI
IO Input 4x 5 V Single Ended Digital Input
Output 4x 5 V Single Ended Digital Output
Analog Input 1x -10..10 V Differential Analog Input 16 bits
Communications CANopen
Supported Motion Modes Profile Position, Profile Speed, Profile Torque, Cyclic Sync Position, Cyclic Sync Velocity, Cyclic Sync Torque, Homing
Dimensions 42 mm x 29 mm x 19.4 mm
Weight 28 gr
Functional Safety STO SIL3 PLe (certification pending)
