Penlink > Products > Fiber Optical Rotary Joints > Single Channel > MJX-Serie
MJX-Serie

MJX-Serie

World’s Smallest Micro Fiber Optical Rotary Joint

MJX series Fiber Optic Rotary Joints (FORJs) are extremely compact. So small they can even be used in the middle of fluid flows. They are the world’s smallest and lightest.

Categories: Fiber Optical Rotary Joints, Single Channel
  • Description
  • Specifications

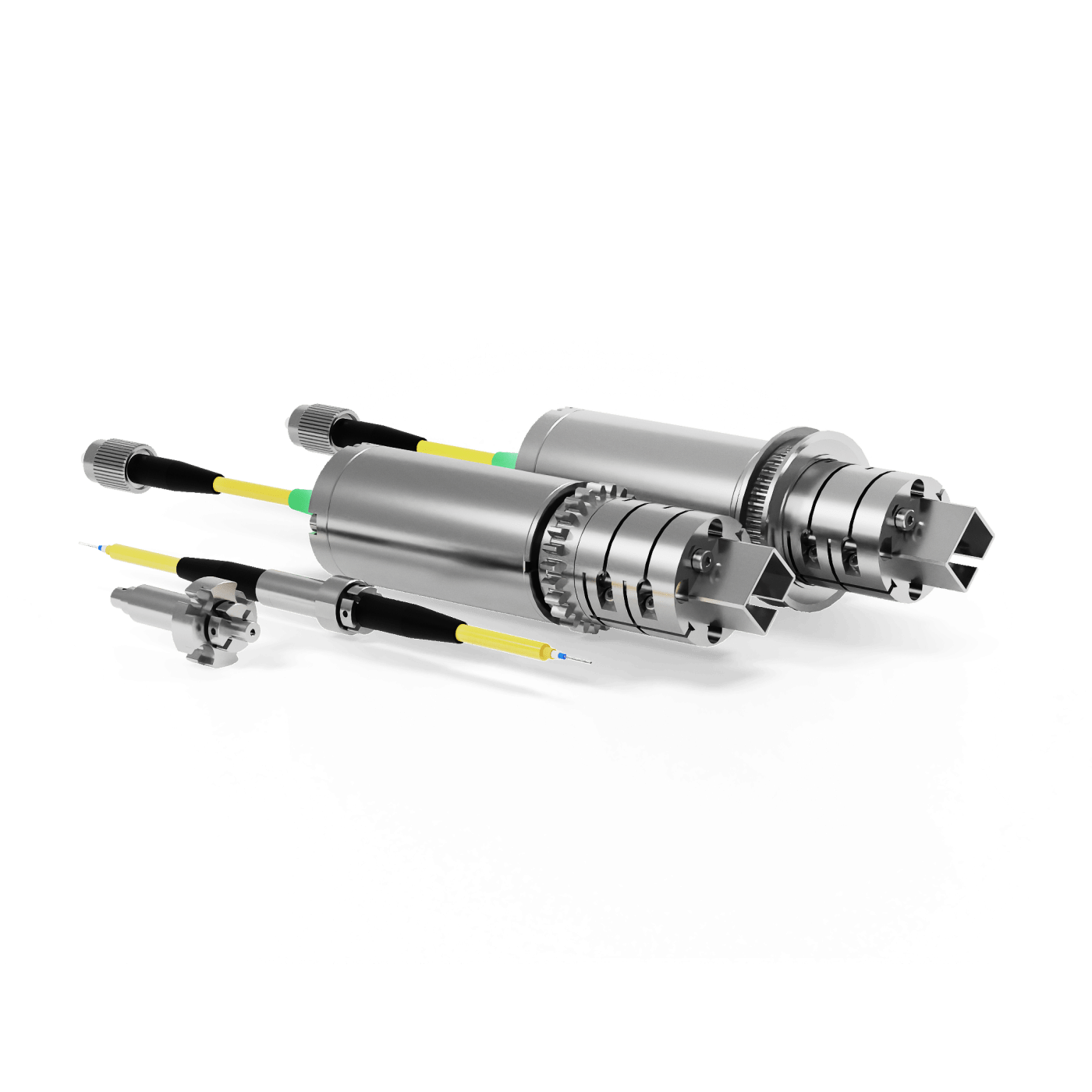

MJX-FORJ Series

Micro Fiber Optical Rotary Joint

MJX series Fiber Optic Rotary Joints (FORJs) are extremely compact. So small they can even be used in the middle of fluid flows. They are the world’s smallest and lightest. They feature very low insertion loss and impressive return loss performance.

Model MJXA typically yields return loss figures higher than 60 dB. Similar to R series and RFCX series, the MJX Series FORJs contain fluid, which ensures condensation-free operation at extremely low temperatures. It is also ideal for high-humidity environments.

The standard packages are dust and watertight for harsh environment applications. They are designed to tolerate both occasional water splash and shallow water (or oil) immersion. These rugged devices can operate under arctic temperature environments (See insertion loss temperature cycling plot below).

This model’s low static and dynamic torques make it an ideal choice for low-torque applications such as optogenetics. For the pigtail-free option consider our model RFCX, RFC, or RST. In those cases, remember to specify “low torque”. MJX-SAP is specifically designed for OCT (Optical Coherent Tomography) applications. Its mounting scheme is identical to the MJP-SAP model FORJ. We offer gear or pulley as a driving mechanism. The receptacle can be SC/APC, FC/APC, or LC/APC.

Note: All insertion loss and return loss measurements are performed by joining the FORJ to the light source through a fusion splice (without the use of connectors). Insertion loss of all receptacle types of FORJs, such as RST, RFC, and RFCX, are measured with connectors of similar type. Their return loss is not measured.

IL Temperature Handling

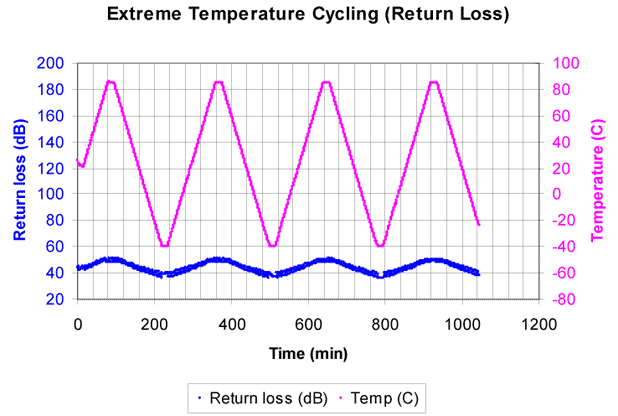

RL Temperature Handling
Quick Specifications
Parameters Values
Wavelength 650-1650 nm
Maximum Speed 2000 rpm
Housing Material Stainless Steel
Fiber Types Single or multimode w/3 mm jacket (Kevlar/PVC)
Vibration MIL-STD-167-1A
IP Rating IP 68 for all models
Relevant Documents

Which fiber should I choose: Explaining Fiber, Simplex, Duplex, Multiplexer and more!

MJX-FORJ Series

Technical Specification



Parameters Values
Wavelength range 650-1650 nm
Insertion loss <2 dB (typical: <0.5 dB)
Insertion loss ripple <+/-0.25 dB (typical: +/-0.15 dB)
Return loss (SM) >40 dB (typical: 45 dB, 23°C), >55 dB (MJXA)
Maximum speed 2,000 rpm
Water submersion 1 m, (model RPC for pressure compensation)
Pulling strength 10 N (900 um buffer)
Start up torque <0.01 Nm
Estimated life cycle 200-400 million revolutions
Optical power handling ~5 mW
Working temperature -40 to 85°C
Storage temperature -50 to 85°C
Package style Pigtails on both ends
Housing material Stainless steel
Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types FC, SC, ST, SMA, or LC (and APC finishes)
Dimensions 6.8 mm dia. x 28 mm length
Weight 10 g
Vibration MIL-STD-167-1A
Mechanical shock MIL-STD-810G
IP rating IP 68 for all models
