Penlink > Products > Fiber Optical Rotary Joints > Multi Channel > MRn-Serie
MRn-Serie

MRn-Serie

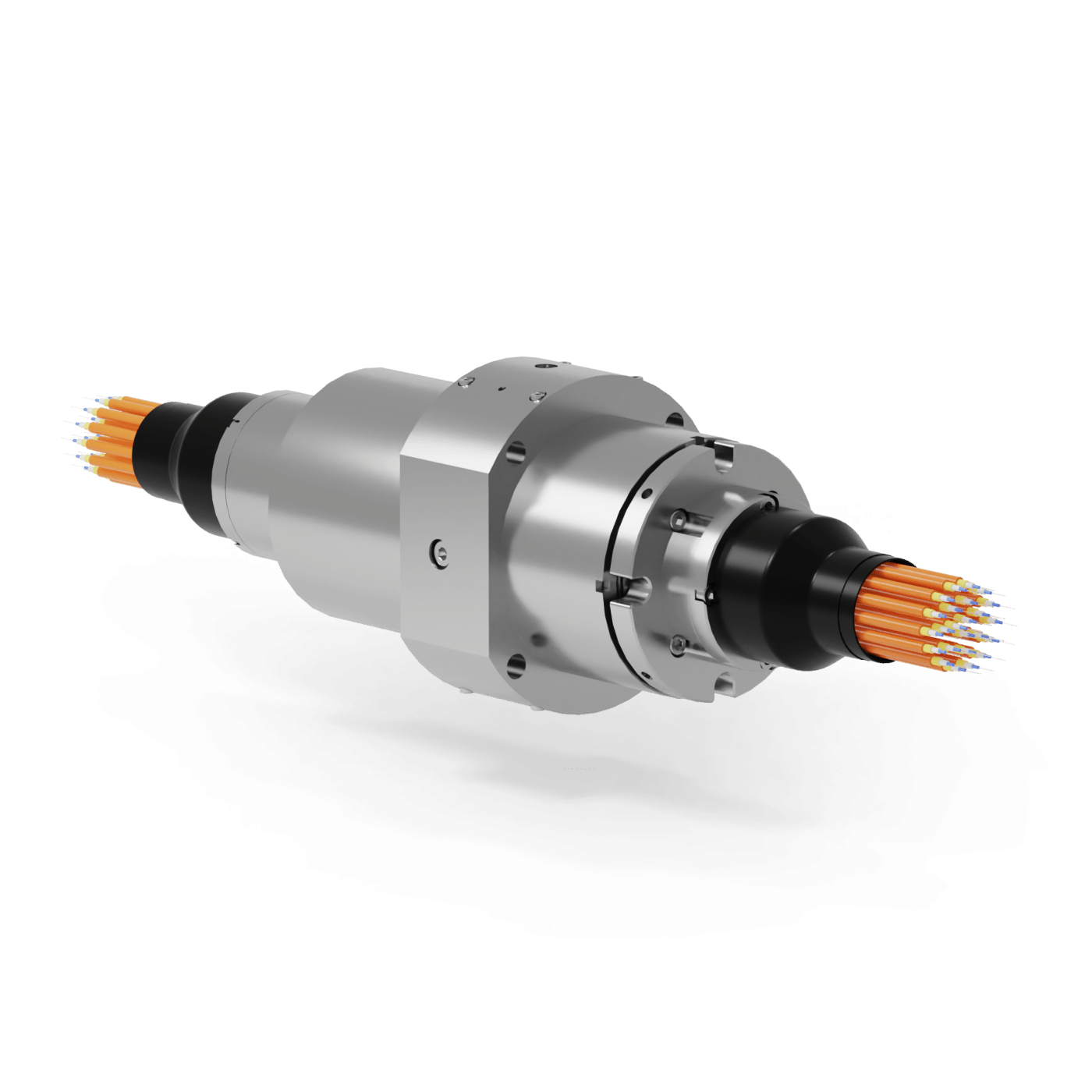

Multi-channel Fiber Joint With Possibility Of 36 Channels

MRn series multi-pass Fibre optic Rotary Joints (FORJs) carry the largest channel count in our FORJ lineup. 20-36 independent fibre channels are offered as standard options. The most common is the 24-channel version.

Categories: Fiber Optical Rotary Joints, Multi Channel
  • Description
  • Specifications

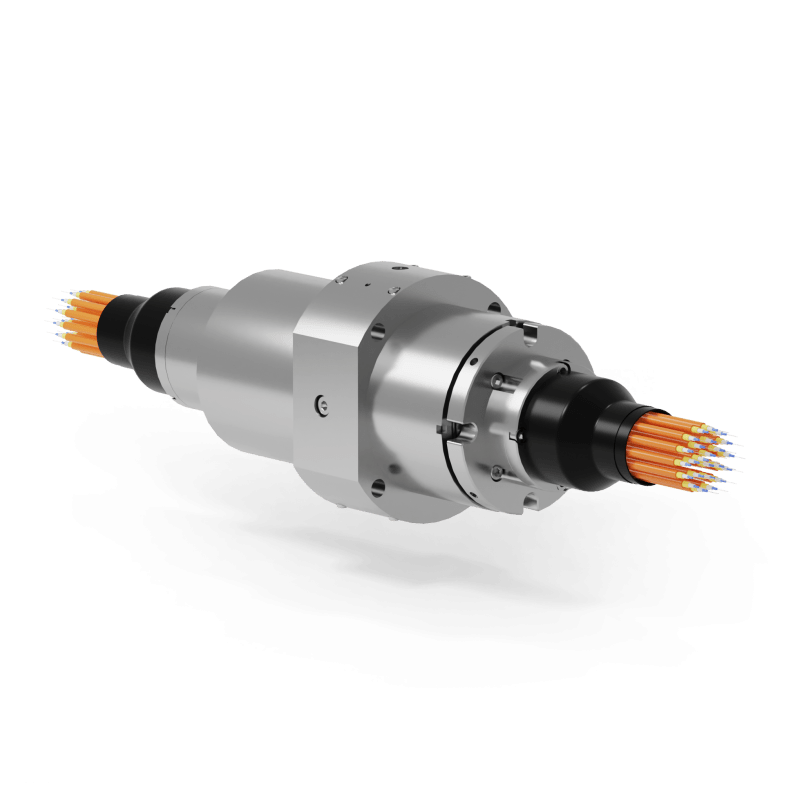

MRn-FORJ Series

Multi Channel Fiber Optical Rotary Joint

MRn series multi-pass Fibre optic Rotary Joints (FORJs) carry the largest channel count in our FORJ lineup. 20-36 independent fibre channels are offered as standard options. The most common is the 24-channel version.

Loss and back reflection is uniform across all channels. There is no channel “drop off” or “blind spot” during rotation. They also feature low crosstalk performance (<-60 dB) for both single and multi-mode fibres. Like our other multi-channel FORJs, all channels can accommodate either singlemode or multimode fibres. It is also possible to combine the two types of fibres in one device across three optical windows (850, 1310, and 1550 nm).

As a rule of thumb, always consider a lower channel count first for smaller sizes, lower cost, faster delivery, and easier handling. However, if a massive channel count is necessary, the MRn series FORJs offer the best solution.

Note: All insertion loss and return loss measurements are performed by joining the FORJ to the light source through a fusion splice (without the use of connectors). Insertion loss of all receptacle types of FORJs, such as RST, RFC, and RFCX, are measured with connectors of similar type. Their return loss is not measured.

Quick Specifications
Parameters Values
Wavelength 1270-1610 nm for SM; 850 and 1310 nm for MM
Maximum Speed 200 rpm
Housing Material Stainless Steel
Fiber Types SM or MM w/3 mm jacket, 1 m (Kevlar/PVC or armor)
Vibration MIL-STD-167-1
IP Rating Up to IP 65
Relevant Documents

Which fiber should I choose: Explaining Fiber, Simplex, Duplex, Multiplexer and more!

MRn-FORJ Series

Technical Specification



Parameters Values
Wavelength 1270-1610 nm for SM; 850 and 1310 nm for MM
Insertion loss <6 dB (typical: 2-3 dB)
Insertion loss ripple <+/- 1.2 dB
Return loss (SM) 45 dB
Crosstalk >50 dB (typical: 63 dB)
Chromatic dispersion <0.01 ps/nm
Polarization mode dispersion <0.01 ps
Maximum speed 200 rpm
Pulling strength 10 N
Start up torque <1 Nm
Estimated life cycle 100 million revolutions
Optical power handling 23 dBm
Working temperature -20 to 65°C
Storage temperature -25 to 75°C
Package style Pigtails
Housing material Stainless steel
Fiber types SM or MM w/3 mm jacket, 1 m (Kevlar/PVC or armor)
Connector types FC, SC, ST, SMA, LC or /APCs
Dimensions 67 mm dia. x 221 mm length
Weight 3.5 kg
Vibration MIL-STD-167-1
Mechanical shock MIL-STD-810F
IP rating Up to IP 65
