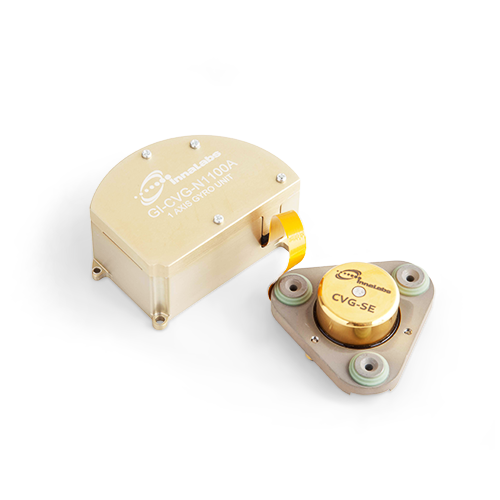

N-Serie Gyroscope

N-Series

Tactical & Industrial Grade Performance

The high gain of piezoelectric elements delivers best in class noise performance. The control electronics operates in a closed-loop mode providing a high system bandwidth which is essential when operating in highly dynamic environments.

These gyroscopes can facilitate customized mounting solutions and, due to their high dynamic range, low noise and high MTBF, combined with the small size make this gyroscope family the ideal choice for platform stabilization.

Applications

The 2000 and 1000 N-Series Gyroscopes are applicable in many demanding applications.

Platform Stabilisation
Stabilisation Systems
Commercial Ship Navigation/Gyrocompass
GPS Aiding for positioning systems in high-precision agriculture and mapping
Stabilizations of survey instruments
Flight control and navigation for Medium-to-Large UAV’s
Flight Control for Helicopters and Aircraft

Relevant Documents

Penlink Design Slip Rings for Large Offshore Cranes

Inertial Sensor Solutions For Precision And Real-time Data

Structural Health Monitoring

N-Series

Technical Specification

Parameters	GI-CVG-N2x00A/D	GI-CVG-N1x00A/D
Grade	Tactical	Industrial
In-run Bias Stability (room temperature, 1σ), deg/hr	< 0.22	< 0.22
Bias Stability (full temperature range, 1σ), deg/hr	< 10	< 50
Number of Axes	1 or 2
Scale factor error, full temperature range, 1σ	< 3,500
Scale factor linearity	≤ 1500
Angular Random Walk, deg/√hr	0.01 typical

Electrical Interface
Bandwidth (-3dB)	≥ 300
Interface	Analogue or Digital RS-422
Start-up Time	1 sec typical

Physical Specifications
Weight (each sensitive element)	71 g
Weight (each damper)	26 g
Weight (each electronics with connectors)	105 g (One-Axis) 115 g (Two-Axis)

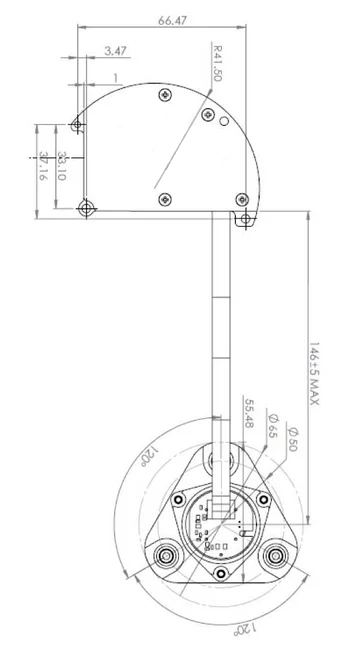

Dimensions, mm	H25 x D29.4 (Sensitive Element)
MTBF	> 500,000 hrs
Built-in Self Test	Yes
