Penlink > Products > Fiber Optical Rotary Joints > Multi Channel > PJ2-Serie
PJ2-Serie

PJ2-Serie

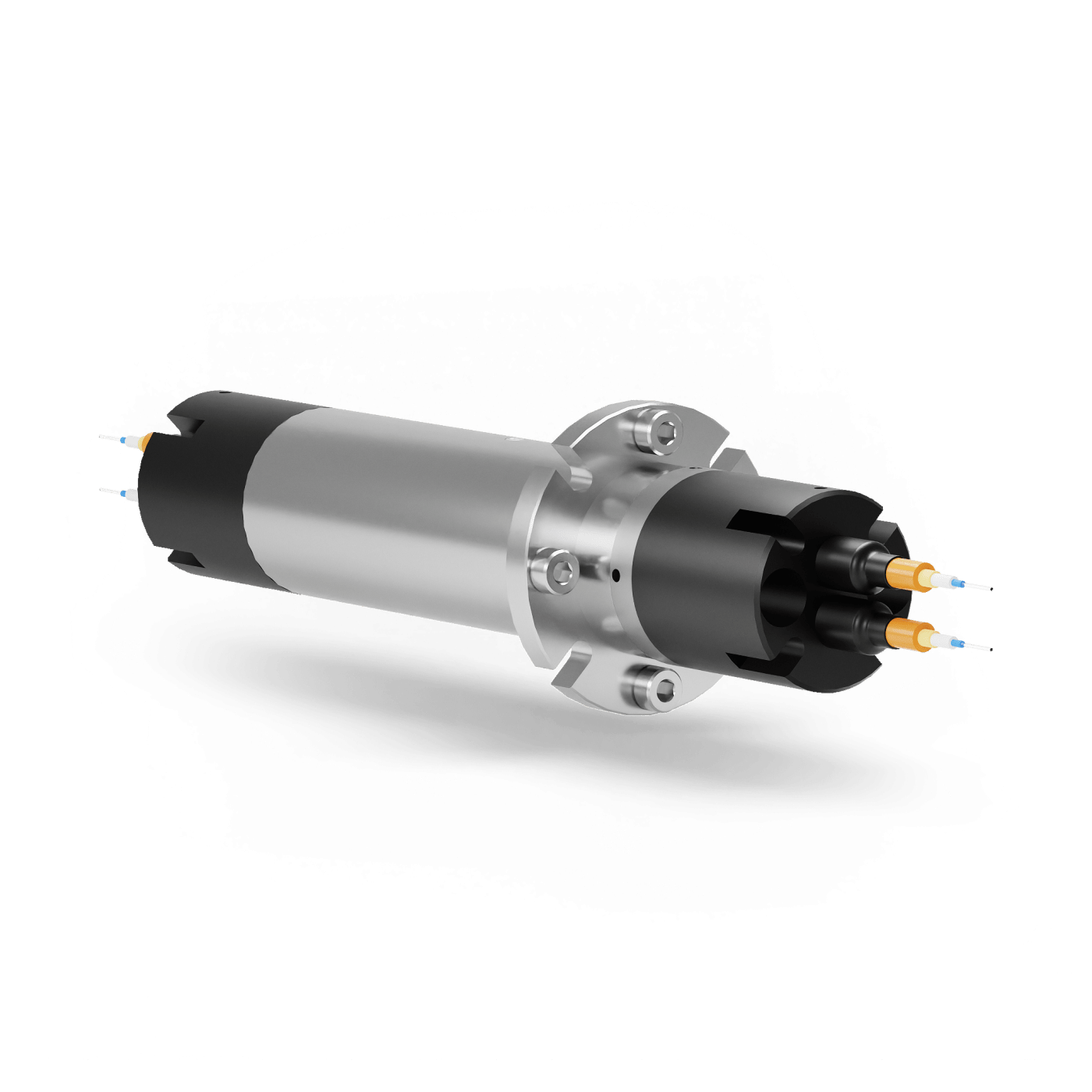

Rugged Two Channel Fiber Optical Rotary Joint

The PJ2, or Plastic optical fibers (POF) possess a few important characteristics that make them favorite choices for certain short-distance fiber optic applications.

Categories: Fiber Optical Rotary Joints, Multi Channel
  • Description
  • Specifications

PJ2-FORJ Series

Two Channel Fiber Optical Rotary Joint

Plastic optical fibers (POF) possess a few important characteristics that make them favorite choices for certain short-distance fiber optic applications. Their large cores allow easy light coupling. Termination can be simplified to quick hot knife cutting or diamond turning. They are bend-insensitive and do not fatigue easily.

Our PJ2 series 2-channel FORJ connects two independent fiber channels simultaneously. They are blind-spot-free during rotation and are ideal for machine control applications such as SERCOS Interfaces. The rugged design permits underwater usage. Damaged fibers can be easily replaced without costly repairs of the FORJ itself.

Quick Specifications
Parameters Values
Wavelength 650 nm
Maximum Speed 1000 rpm
Housing Material Stainless steel/Aluminum
Fiber Types PMMA step index, 1 mm core/2 mm jacket
Vibration MIL-STD-167-1A
IP Rating IP 68
Relevant Documents

Which fiber should I choose: Explaining Fiber, Simplex, Duplex, Multiplexer and more!

PJ2-FORJ Series

Technical Specification



Parameters Values
Wavelength 650 nm
Insertion loss <7 dB/channel 1, <10 dB/channel 2 (Premium: <7 dB)
Insertion loss WOW <+/-1 dB/channel 1, <+/-1.5 dB/channel 2
Return loss ~40 dB
Crosstalk >20 dB
Maximum speed 1000 rpm
Pulling strength 20 N
Start up torque <0.2 Nm
Estimated life cycle >200 million revolutions
Optical power handling 23 dBm
Working temperature -40 to 85°C
Storage temperature -50 to 85°C
Package style Pigtails on both ends
Housing material Stainless steel/Aluminum
Fiber types PMMA step index, 1 mm core/2 mm jacket
Connector types FC, ST, and SMA905
Dimensions 24 mm dia. x 130 mm length
Weight ˜250 g
Vibration MIL-STD-167-1A
Mechanical shock MIL-STD-810G
IP rating IP 68
