Penlink > Products > Fiber Optical Rotary Joints > Single Channel > R-Serie
R-Serie

R-Serie

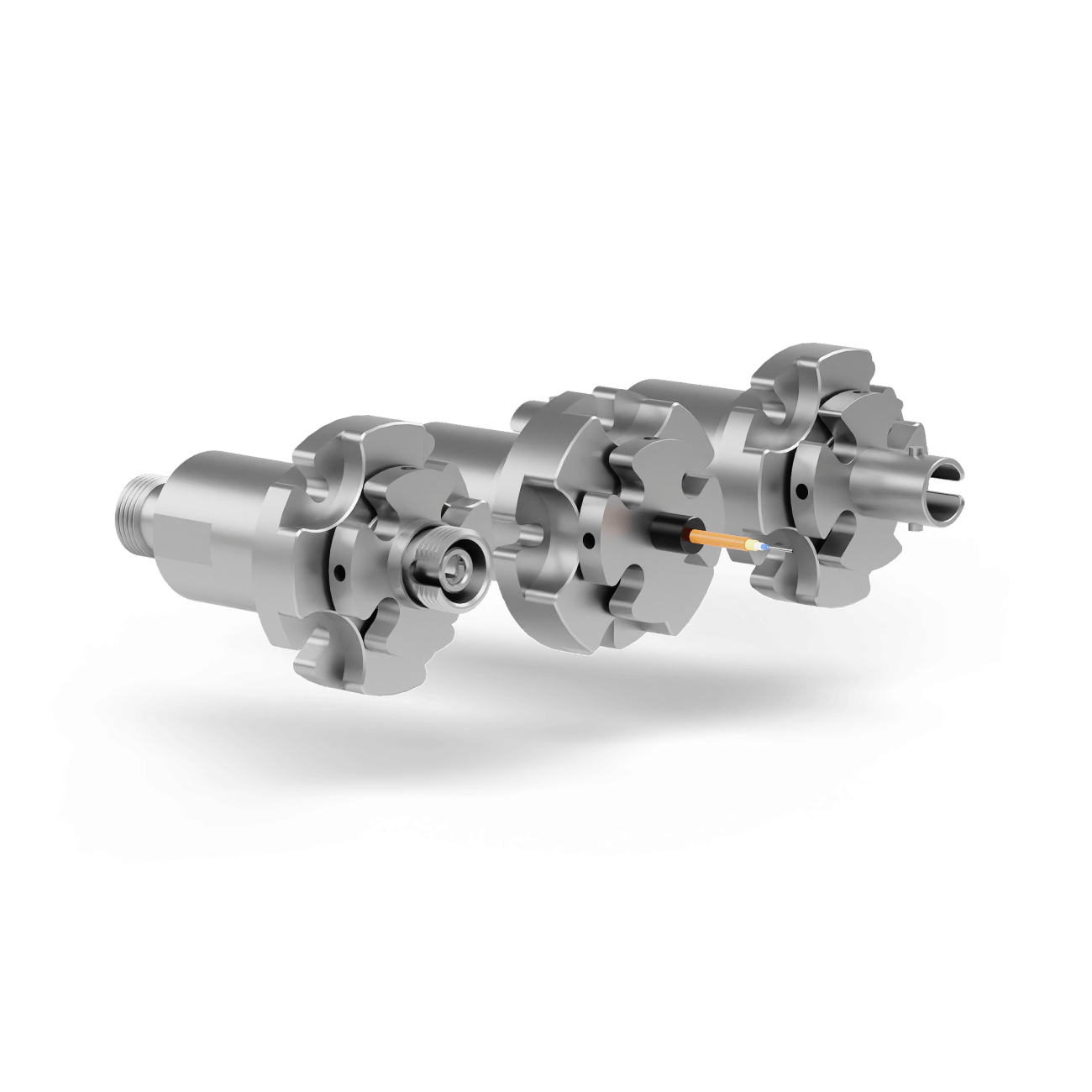

Fiber Optical Rotary Joint

The R series Single-channel (SM or MM) rotary joints offer many variations. The rugged body allows fiber pigtail, ST, or FC receptacles on either the rotor or the stator side. There can be total of nine different configurations to fit the need exactly.

Categories: Fiber Optical Rotary Joints, Single Channel
  • Description
  • Specifications

R-FORJ Series

Fiber Optical Rotary Joint

The R series Single-channel (SM or MM) rotary joints offer many variations. The rugged body allows fiber pigtail, ST, or FC receptacles on either the rotor or the stator side. There can be total of nine different configurations to fit the need exactly.

The standard base models are RPT, RFC, and RST for pigtails, FC/PC, and ST/PC receptacles. Similar to MJX and RFCX series, the R Series FORJs contain fluid, which ensures condensation-free operation at extremely low temperatures. It is also ideal for high-humidity environments. The R series features extremely low insertion loss and impressive return loss performance for both singlemode and multimode fibers.

Model RPTA typically yields return loss figures higher than 60 dB. These rugged devices can operate under arctic temperature environments. All models are dust and watertight for harsh environments.

Note: All insertion loss and return loss measurements are performed by joining the FORJ to the light source through a fusion splice (without the use of connectors). Insertion loss of all receptacle types of FORJs, such as RST, RFC, and RFCX, are measured with connectors of similar type. Their return loss is not measured.

IL Temperature Handling
RL Temperature Handling
Quick Specifications
Parameters Values
Wavelength 650-1650 nm
Maximum Speed 2000 rpm
Housing Material Stainless Steel
Fiber Types SM/MM, 3 mm Kevlar/PVC or 2.9 mm armor
Vibration MIL-STD-167-1A
IP Rating IP 68 for all models
Relevant Documents

Which fiber should I choose: Explaining Fiber, Simplex, Duplex, Multiplexer and more!

R-FORJ Series

Technical Specification



Parameters Values
Wavelength range 650-1650 nm
Insertion loss <2 dB/RPT&RPTA; <3 dB/RFC; <3 dB/RST
Insertion loss ripple <+/-0.25 dB (typical: +/-0.15 dB)
Return loss (SM) >40 dB(RPT), >30 dB(RFC/RST), >55 dB(RPTA)
Maximum speed 2,000 rpm
Water submersion 1 m, (RPT only, model RPC for pressure compensation)
Pulling strength 10 N
Start up torque <0.1 Nm
Estimated life cycle >500 million revolutions (1,000 rpm/365 days continuous)
Optical power handling ~5 mW
Working temperature -40 to 85°C
Storage temperature -50 to 85°C
Package style Pigtail or receptacles (FC, FC/APC, or ST)
Housing material Stainless steel
Fiber types SM/MM, 3 mm Kevlar/PVC or 2.9 mm armor
Connector types for RPT FC, SC, ST, SMA, or LC (PC and APC)
Dimensions 17 mm dia. (body) x 26 mm dia. (flange)
Weight ~50 g
Vibration MIL-STD-167-1A
Mechanical shock MIL-STD-810G
IP rating IP 68 for all models
