Penlink > Products > Fiber Optical Rotary Joints > Single Channel > RFCX-Series

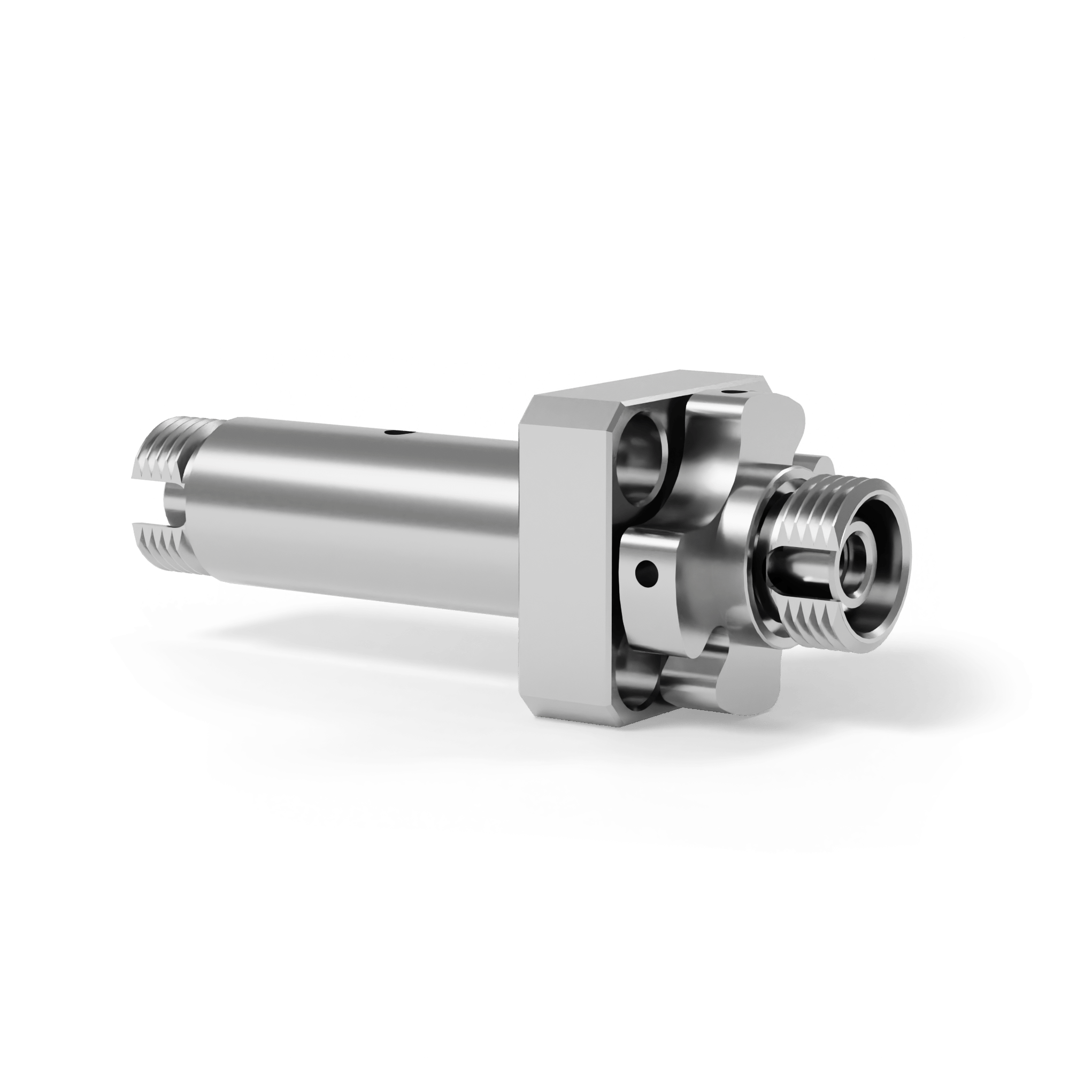

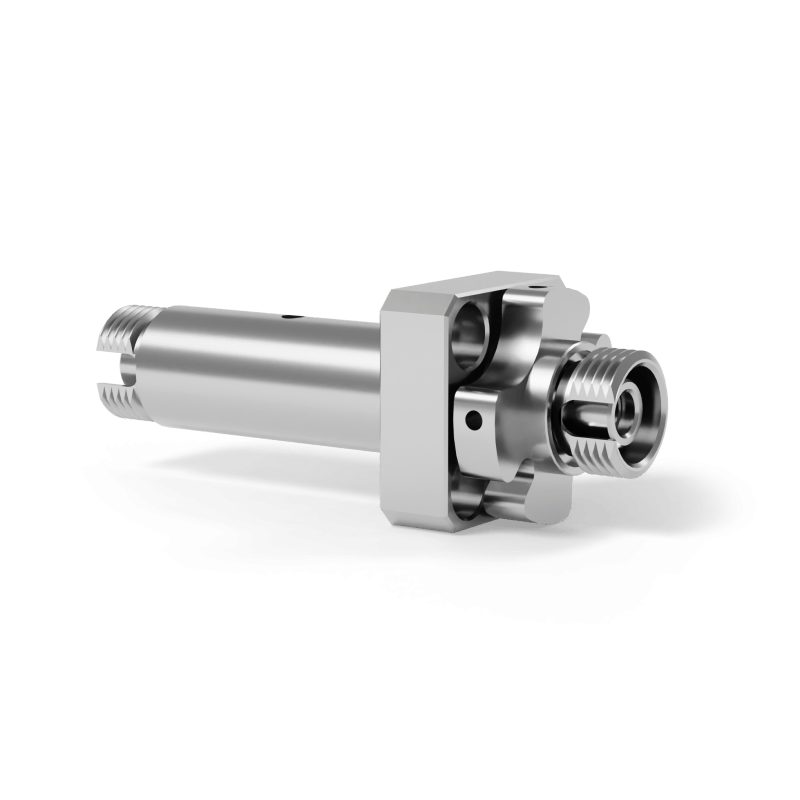

RFCX-Series

RFCX-Series

Fiber Optical Rotary Adapter

RFCX series Fiber Optic Rotary Adapters (FORAs) are uniquely designed to have identical cross sections and mounting features as their standard bulkhead adapter counterparts, sometimes also called mating sleeves.

Categories: Fiber Optical Rotary Joints, Single Channel
  • Description
  • Specifications

RFCX-FORJ Series

Fiber Optical Rotary Adapter

RFCX series Fiber Optic Rotary Adapters (FORAs) are uniquely designed to have identical cross sections and mounting features as their standard bulkhead adapter counterparts, sometimes also called mating sleeves. FORAs allows the fiber to rotate freely while maintaining uninterrupted transmission of the optical signal. The FORAs can be a pop-in replacement for FC bulkheads. Similar to MJX and R series, the RFCX Series FORJs contain fluid, which ensures condensation-free operation at extremely low temperatures. It is also ideal for high-humidity environments.

Similar to other single-channel FORJs, the RFCX model features low insertion loss and small loss variation during rotation (wow). Return loss can reach as high as >40 dB depending on the conditions of the mating connectors. Well-conditioned connectors can also result in typical losses of around 1 dB. They are rugged, sealed for dust and moisture, and can operate under temperature extremes (See insertion loss temperature cycling plot on the left).

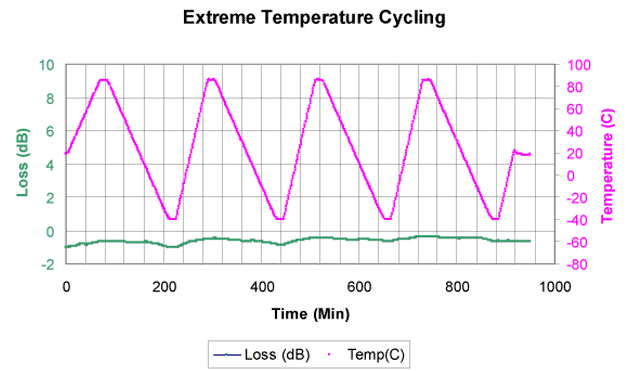

IL Temperature Handling
Quick Specifications
Parameters Values
Wavelength 650-1650 nm
Maximum Speed 2000 rpm
Housing Material Stainless Steel
Fiber Types Single mode or multimode
Vibration MIL-STD-167-1A
IP Rating IP 68 for all models
Relevant Documents

Which fiber should I choose: Explaining Fiber, Simplex, Duplex, Multiplexer and more!

RFCX-FORJ Series

Technical Specification



Parameters Values
Wavelength range 650-1650 nm
Insertion loss <3 dB
Insertion loss ripple <0.5 dB (typical: 0.3 dB)
Return loss (SM) >30 dB (typical: 40 dB)
Maximum speed 2,000 rpm
Start up torque <0.01 Nm
Estimated life cycle 200-400 million revolutions
Optical power handling ~5 mW
Working temperature -40 to 85°C
Storage temperature -50 to 85°C
Package style FC receptacle (FC/APC option not available currently)
Housing material Stainless steel
Fiber types Single mode or multimode
Connector format FC/PC
Mounting method Flange identical to FC bulkhead
Weight 19 g
Vibration MIL-STD-167-1A
Mechanical shock MIL-STD-810G
IP rating IP 68
