Products

Penlink > Products > Fiber Optical Rotary Joints > Single Channel > RPC-Series
RPC-Series

RPC-Series

High-Pressure Fiber Optical Rotary Joint For Offshore

Although both the MJX and RPT series FORJs can be used underwater their pressure ratings are limited (1,000 psi) the RPC series was designed for the ultimate pressure (10,000 psi).

Categories: Fiber Optical Rotary Joints, Single Channel
  • Description
  • Specifications

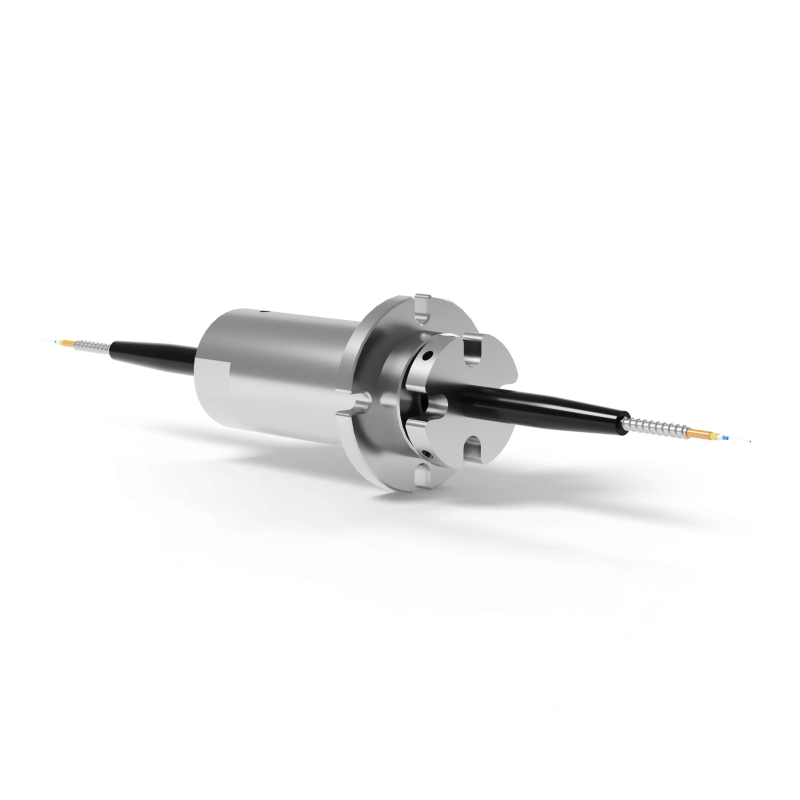

RPC-FORJ Series

Fiber Optical Rotary Joint

Although both the MJX and RPT series FORJs can be used underwater their pressure ratings are limited (1,000 psi) the RPC series was designed for the ultimate pressure (10,000 psi). Standard units come with stainless steel armored jackets, which can be terminated with ST, FC, or SC connectors or their APC counterparts.

Similar to model RPT, RPC features extremely low insertion loss and high return loss performance for both singlemode and multimode fibers. Model RPCA guarantees 50 dB return loss. These rugged devices can operate under arctic temperature environments.

Note: All insertion loss and return loss measurements are performed by joining the FORJ to the light source through a fusion splice (without the use of connectors). Insertion loss of all receptacle types of FORJs, such as RST, RFC, and RFCX, are measured with connectors of similar type. Their return loss is not measured.

IL Temperature Handling
RL Temperature Handling
Quick Specifications
Parameters Values
Wavelength 650-1650 nm
Maximum Speed 2000 rpm
Housing Material Stainless Steel
Fiber Types SM or MM, 2.9 mm armored jacket (SS)
Shock and Vibration Telcordia GR1221CORE
Relevant Documents

Which fiber should I choose: Explaining Fiber, Simplex, Duplex, Multiplexer and more!

RPC-FORJ Series

Technical Specification



Parameters Values
Wavelength range 650-1650 nm
Insertion loss <2 dB
Insertion loss ripple <+/-0.25 dB (typical: +/-0.15 dB)
Return loss (SM) >40 dB (RPC), >55 dB (RPCA)
Maximum speed 2,000 rpm
Pressure rating 10,000 psi (6 km water depth)
Pulling strength 50 N
Start up torque <0.1 Nm
Estimated life cycle 200-400 million revolutions
Optical power handling ~5 mW
Working temperature -40 to 85°C
Storage temperature -50 to 85°C
Package style Pigtail
Housing material Stainless steel
Fiber types SM or MM, 2.9 mm armored jacket (SS)
Connector types for RPT FC, ST, and SC (APC finishes also available)
Dimensions 17 mm dia. (body) / 26 mm dia. (flange) x 46 mm length
Weight ~80 g
Shock and vibration Telcordia GR1221CORE
