Penlink > Products > Slip Rings > Standard Slip Rings > Standard Pin Serie
Standard Pin Serie

Standard Pin Serie

Reliable & Maintenance-Free Connectivity

Our Pin Connection Slip Rings are precision-engineered for easy electrical connection and capable of carrying higher currents, making them excellent replacements for mercury slip rings. Specifically designed for the manufacturing industry, these slip rings utilize gold-plated rings and gold alloy brushes for enhanced performance and reliability.

Categories: Standard Slip Rings, Slip Rings Tags: OEM, Pin Slip Ring, Standard Slip Ring
  • Description
  • Specifications

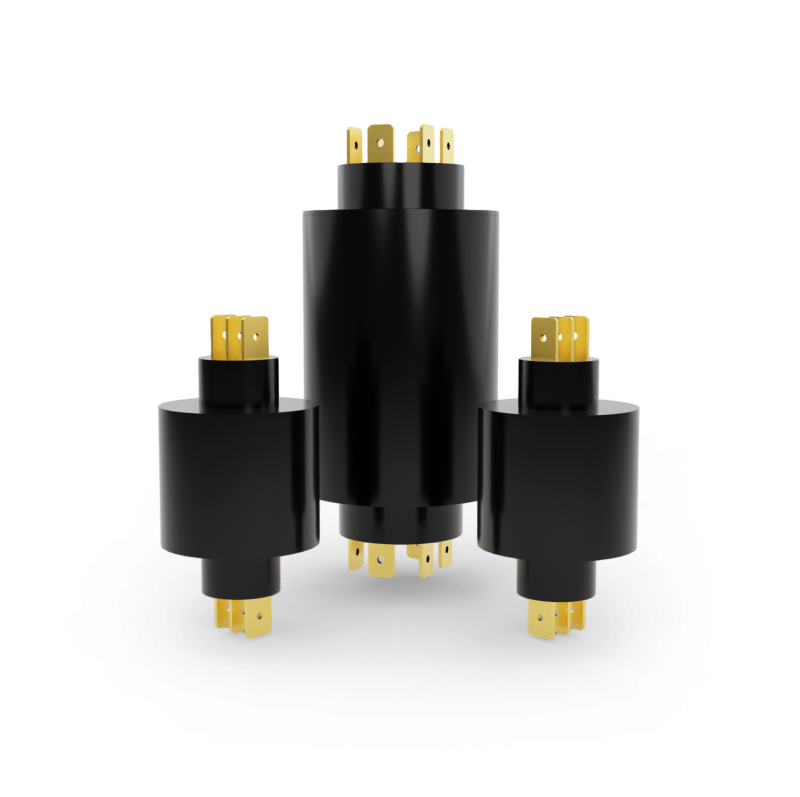

Pin Slip Ring

Compact and Reliable Pin Slip Rings

Our Pin Connection Slip Rings are precision-engineered to deliver seamless, high-current electrical connections, making them ideal replacements for mercury slip rings in the manufacturing sector. These slip rings feature gold-plated rings paired with gold alloy brushes to maximize performance, durability, and reliability in demanding industrial applications.

With a rated voltage of 240VDC/240VA, a dielectric strength of 500VAC at 50Hz for 60 seconds, and an insulation resistance of 1000MΩ at 500VDC, they ensure safe, efficient, and stable operation. Electrical noise is tightly controlled, limited to ≤10mΩ, enabling reliable data transmission. Designed to handle speeds from 0 to 400 rpm, they operate efficiently in temperatures from -20°C to +80°C and in humidity levels of 60% RH or above.

Built with durable precious metal contacts and housed in resilient engineering plastic, our slip rings offer an IP51 protection level to guard against environmental factors.

Their advanced fiber brush technology allows for continuous 360° rotation, ensuring smooth and maintenance-free signal transmission without the need for lubrication. Electrical noise remains below 0.01 Ω for superior signal clarity. With multiple contact points per circuit, these slip rings achieve minimal contact pressure, reducing wear and noise for extended, dependable performance.

Typical Applications

  • CCTV Pedestal
  • Automatic arm
  • Medical equipment
  • Rotary index table
  • Production line
  • Industry process equipment

Pin Slip Ring

Electrical and Mechanical Data



Specification Values
Rated Voltage 240VDC/240VA
Dielectric Strength 500VAC@50Hz,60s
Insulation Resistance 1000MΩ/500VDC
Electrical Noise ≤10mΩ
Rated Speed 0~400rpm
Working Temperature -20°C ~ +80°C
Humidity 60%RH or higher
Contact Material Precious metal
Housing Engineering plastic
Protection Level IP51

X32 Pin Slip Ring
Model Total No. of Circuits Rated Current Outline Dimension
2A 5A 15A 20A Outer diameter x Length (mm) Pin Thickness x Width (mm)
C-X32-2 2 – – 2 – ⌀32 x 28 0,8 x 6,3
C-X32-3 3 – – 3 –  ⌀32 x 28 0,8 x 6,3
C-X32-4 4 2 – 2 –  ⌀32 x 28 0,8 x 6,3
0,8 x 2,8

X45 Pin Slip Ring
Model Total No. of Circuits Rated Current Outline Dimension
5A 20A Outer diameter x Length (mm) Pin Thickness x Width (mm)
C-X45-6 6 – 6 ⌀45 x 64,5 0,8 x 6,3
C-X45-8 8 2 6  ⌀45 x 64,5 0,8 x 6,3
0,8 x 2,8
