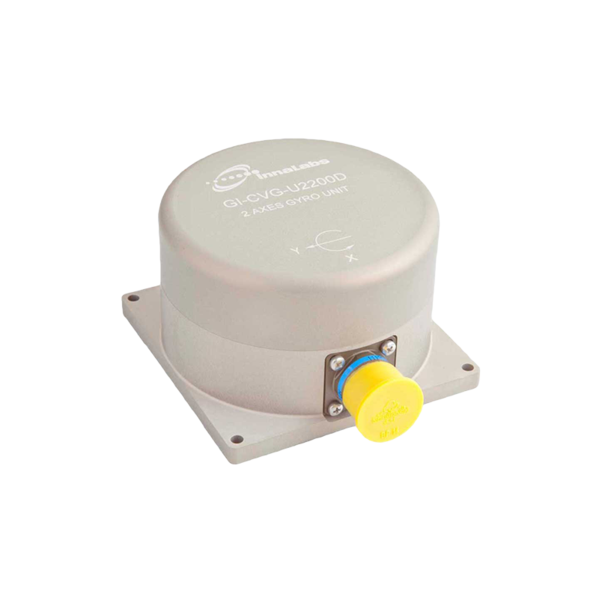

U-Serie Gyroscope

U-Serie Gyroscope

Tactical Grade Performance

The U-Series Gyroscopes are a range of industrial and tactical grade gyroscopes that delivers less than <10°/hr over the full temperature range.

Categories: , , Tags: , ,

U-Series

Tactical Grade Performance In A Small, Lightweight Package

The high gain of piezoelectric elements delivers best-in-class noise performance. The control electronics operate in a closed-loop mode providing a high system bandwidth which is essential when operating in highly dynamic environments.

These gyroscopes can facilitate customized mounting solutions and, due to their high dynamic range, low noise, and high MTBF, combined with the small size make this gyroscope family the ideal choice for platform stabilization.

Applications

The 2000 and 1000 U-Series Gyroscopes are applicable in many demanding applications.

  • Platform Stabilisation
  • Stabilisation Systems
  • Commercial Ship Navigation/Gyrocompass
  • GPS Aiding for positioning systems in high-precision agriculture and mapping
  • Stabilizations of survey instruments
  • Flight control and navigation for Medium-to-Large UAV’s
  • Flight Control for Helicopters and Aircraft
Relevant Documents

Penlink Design Slip Rings for Large Offshore Cranes

Inertial Sensor Solutions For Precision And Real-time Data

Structural Health Monitoring

U-Series

Technical Specification



Performance
Grade Tactical / Industrial
Number of Axes 1 or 2
In-run Bias Stability (room temperature, 1σ), deg/hr < 0.22
Bias Stability (full temperature range, 1σ), deg/hr < 10 / < 50
Scale factor error, full temperature range, 1σ < 3,500
Angular Random Walk, deg/√hr 0.01 typical
Electrical Interface
Bandwidth (-3dB) ≥ 300
Interface Analogue or Digital RS-422
Start-up Time 1 sec typical
Physical Specifications
MTBF > 500,000
Weight 1.1 kg (One-Axis)
1.2 kg (Two-Axis)

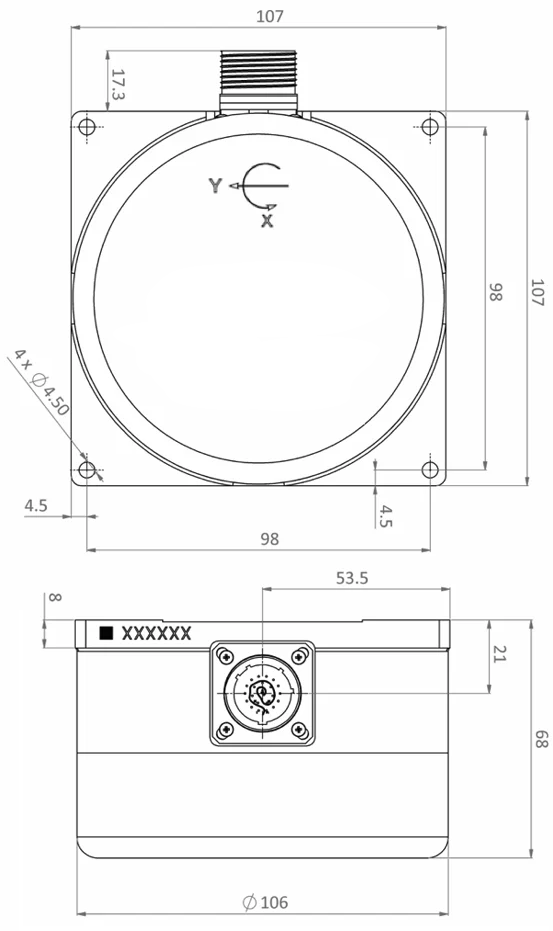

Dimensions H68 x L107 x W107 mm
Built-in Self Test Yes
