XPH1

XPH1

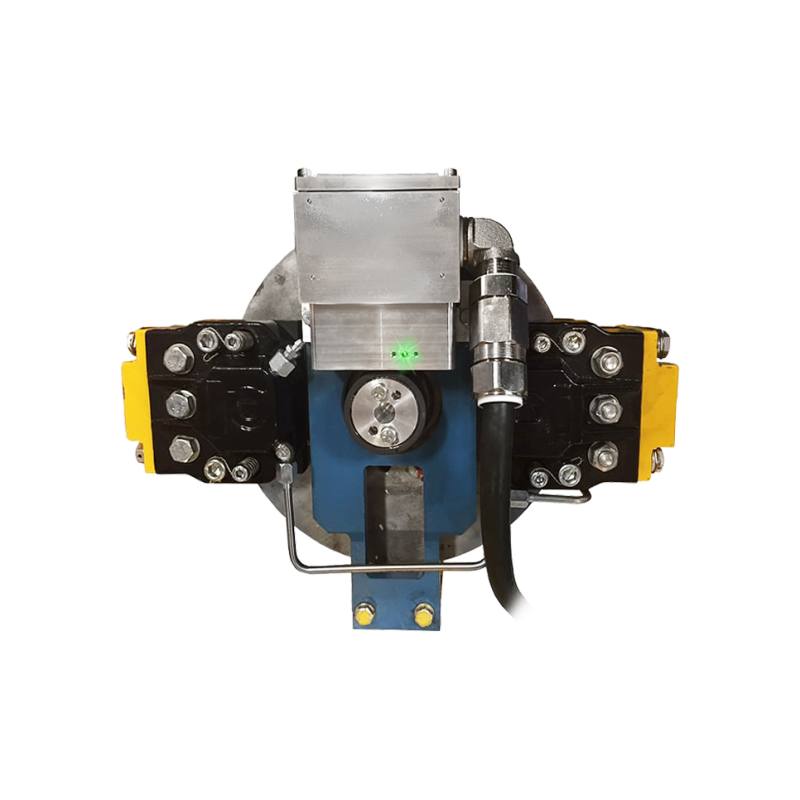

Reliable And Explosion Proof Bearingless Encoder

The XPH1 SMARTSafe Encoder is a revolutionary solution designed to minimize downtime in top drive applications. As the world’s first explosion-proof encoder with removable electronics and no external barrier, it offers unmatched reliability and safety.

Certified for use in hazardous environments, the XPH1 is built to withstand extreme conditions, making it the ideal choice for industries that demand the highest levels of performance and protection.

Best Choice
Categories: Magnetic Encoders, Explosion Safe Encoders Tag: Explosion Safe
  • Description
  • Specifications

XPH1

Explosion Proof Bearingless Encoder

Dramatically reduce encoder-related downtime on top drive applications with the XPH1 SMARTSafe™ encoder. As the world’s first explosion-proof encoder with removable electronics and no external barrier, the XPH1 offers unparalleled reliability and durability. Certified for cULus, ATEX, and IECEx, this encoder is designed for use in hazardous environments, including NEC500 and NEC 505 gas hazardous areas.

The XPH1 comes complete with an auto-centering jig, base plate, riser shaft, sensor, and rotor, fitting NOV TDS9, TDS10, and TDS11. Use the XPH1 directly in your application without the need for barriers or isolators, even with cable lengths of 1000 feet or more. Our SMARTSafe encoder systems are protected against short circuits, power-to-output wiring, and output-to-ground faults. Full diagnostics make it easy to determine signal quality with a green LED indicator, while an orange LED alerts you to any short circuit conditions, which the XPH1 can survive.

Say goodbye to encoder bearing failures and sealing problems. The XPH1 can be mounted directly on your motor or built into your machine, providing a more reliable no-bearing encoder solution. Vibration, shock, liquids, dust, and dirt won’t harm the SMARTSafe XPH1 encoders, making them ideal for applications such as mud pumps, paint booths, and hazardous duty IEC motors.

Eliminate the biggest cause of hazardous duty encoder failure by choosing the XPH1 SMARTSafe encoder for your applications.

  • Fits NOV TDS 9, 10 & 11 Top Drives Directly
  • No Barrier or Isolator Needed
  • No Intrinsic Safety Ground Required
  • Class I Div 1 Groups C, D Listed
  • AEx Zone 1 Certified
  • Zone 1 & 2 Certified
  • Fully Protected Against Shorts and Wiring Errors
  • Drives up to 1000 feet [305m] of cable without repeaters
  • 2 Year No-Hassle Warranty
  • -50°C to +85°C Operation
Relevant Documents

New Absolute Rotary Encoders for Industrial Automation

Heavy Duty Encoders For Harsh Environments

XPH1

Technical Specification



Technical Information
Operating Power 5-24VDC in/out
400mA max @ 5V; 200mA max @ 12V; 100mA max @ 24V (plus cable load)
Output Format A Quad B with marker (A, /A, B, /B, Z, /Z)
Frequency Range 0 to 250 kHz
PPR 8-100000
Speed 6000 RPM Max. (contact us for higher speeds)
Maximum Cable Length 1000 ft (305m) (contact us for longer distances)
Rotor Positioning Up to +/-0.100″ [+/-2.54mm] movement/misalignment
Sensor-Rotor Gap 0.040″, +0.015/-0.030″ [1mm+0.38/-0.76]
Temperature -50°C to 85°C
(rotor -50°C to 100°C continuous, +135°C intermittent
Environmental IP65 fully potted sensors
Vibration 5-2000Hz, 18G; 100G Shock
Weight 15lbs. [6.8kg]
Certifications Class I Div 1, Groups C and D*
Class I Zone 1, Ex db ia IIB T4 Gb*
Class I Zone 1, AEx db ia IIB T4 Gb*
Ex db ia IIB T4 Gb (ATEX/IECEx)*
Notes *See installation drawings for Warnings and Limitation
**Consult us for installation guidelines and details
