Penlink > Products > Encoders > Magnetic Encoders > Explosion Safe Encoders > XR4F
XR4F

XR4F

Bearings up to 4X larger than competitors models

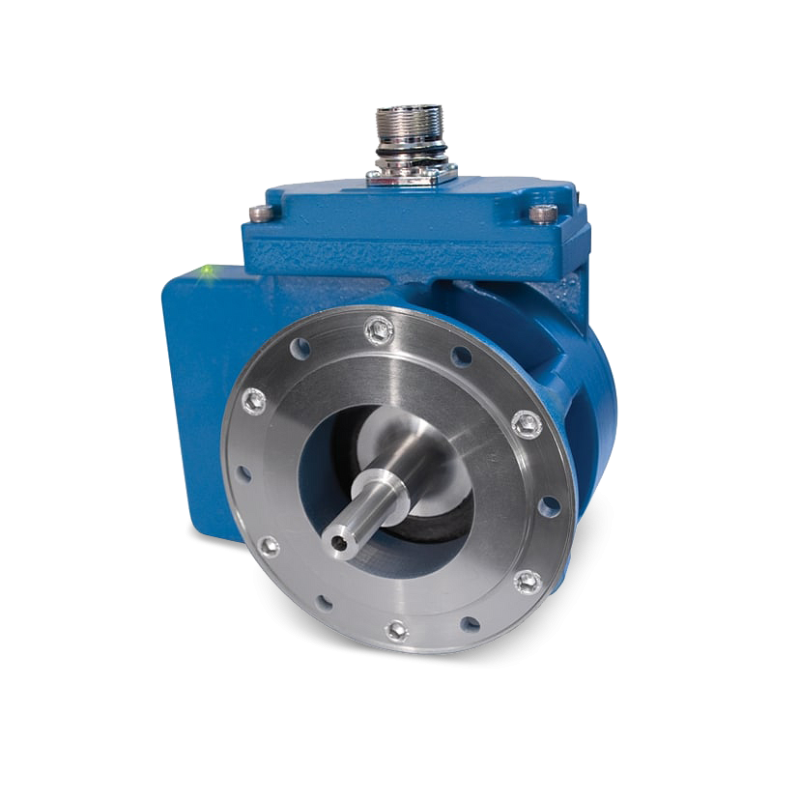

The XR4F SMARTSafe Encoder is a groundbreaking solution designed for hazardous environments, combining robust magnetic encoder technology with advanced safety features. Engineered to withstand extreme conditions, this encoder ensures reliable performance in applications where safety and durability are paramount.

With certifications for ATEX, IECEx, and cULus, the XR4F is the ideal choice for industries requiring the highest levels of protection and reliability.

Best Choice
Categories: Magnetic Encoders, Explosion Safe Encoders
  • Description
  • Specifications

XR4F

Protected Against Surges and Wiring Problems

The XR4F solid shaft encoders are a unique industry first, combining durable magnetic encoder technology with SMARTSafe™ systems to create a truly robust solution for hazardous environments and applications. These encoders are ATEX, IECEx, and cULus certified, making them suitable for use in gas and ATEX dust hazard environments. We also offer hollow shaft models (XR45, XR685), NEMA style shafted models (XR485), and no-bearing modular encoders (XR56, XR85, XR115, XR125, XR850).

For applications requiring ATEX or IECEx Zone 2 or 22, or UL Class I, Division 2, the XR4F can be used directly without the need for barriers, isolators, special connectors, or cable glands.

For applications requiring ATEX or IECEx Zone 1 or 21, we provide protection using the XRB3 isolator in your control cabinet, allowing for intrinsic safety wiring instead of explosion-proof conduit or glands. For applications requiring NEC 500 UL Class I, Division 1, or NEC 505 (c)UL Class I, Zone 0, the XRB3 isolator can be used remotely with intrinsic safety wiring.

Our SMARTSafe encoder systems are protected against short circuits, power-to-output wiring, and output-to-ground faults, ensuring that wiring errors won’t harm the system.

Unlike traditional optical encoders with weak bearings, our rugged SMARTSafe encoders are built to withstand vibration, shock, liquids, dust, and dirt. Whether it’s mud pumps, paint booths, or hazardous duty IEC motors, the XR4F can keep them all working reliably 24/7/365.

Choose the XR4F SMARTSafe encoder to eliminate encoder problems in your hazardous duty applications!

  • ATEX Rated: Zones 1 & 2, 21 & 22
  • IECEx Rated: Zones 1 & 2, 21 & 22
  • 10mm, 11mm & 18mm Shaft Sizes
  • EURO B5 & B10 Flange Mount
  • Up to 5000 PPR
  • Self-Diagnostic LED & Remote Alarm
  • Magnetic Sensors: No Glass Disks
  • -40°C to +80°C Operation
  • 3 Year No-Hassle Warranty
  • cULus Class I Division 1 Groups A,B,C,D Listed
  • cULus Class I Zone 0 Group IIC
  • cULus Class I Division 2 Groups A,B,C,D Listed
Relevant Documents

New Absolute Rotary Encoders for Industrial Automation

Heavy Duty Encoders For Harsh Environments

XR4F

Technical Specification



Technical Information
Operating Power Division 1, Zone 1 (XRB3): 12-24VDC In/Out, 150 mA
Division 2, Zone 2: 5-24VDC In/Out, 150mA
Output Format A Quad B with marker (A, /A, B, /B, Z, /Z)
Frequency Range 0 to 165 kHz
Maximum Cable Length Division 1, Zone 1: Encoder 500′ Isolator 1000′
Division 2, Zone 2 (5 to 12 VDC in): 500′
Division 2, Zone 2 (15 to 24 VDC in): 250′
Temperature -40°C to 80°C (storage -40°C to 100°C)
Environmental IP54
Vibration 5-2000Hz, 20G; 100G Shock
Weight 10-12lbs [4.5-5.5kg]
Certifications ATEX/IECEx Zone 1 & 21 Group IIC
cULus Class I Div 1 and Zone 0 Group A,B,C,D*
ATEX/IECEx Zone 2 & 22 Group IIC
cULus Class I Div. 2 Groups A,B,C,D
