ZJn-Serie

ZJn-Serie

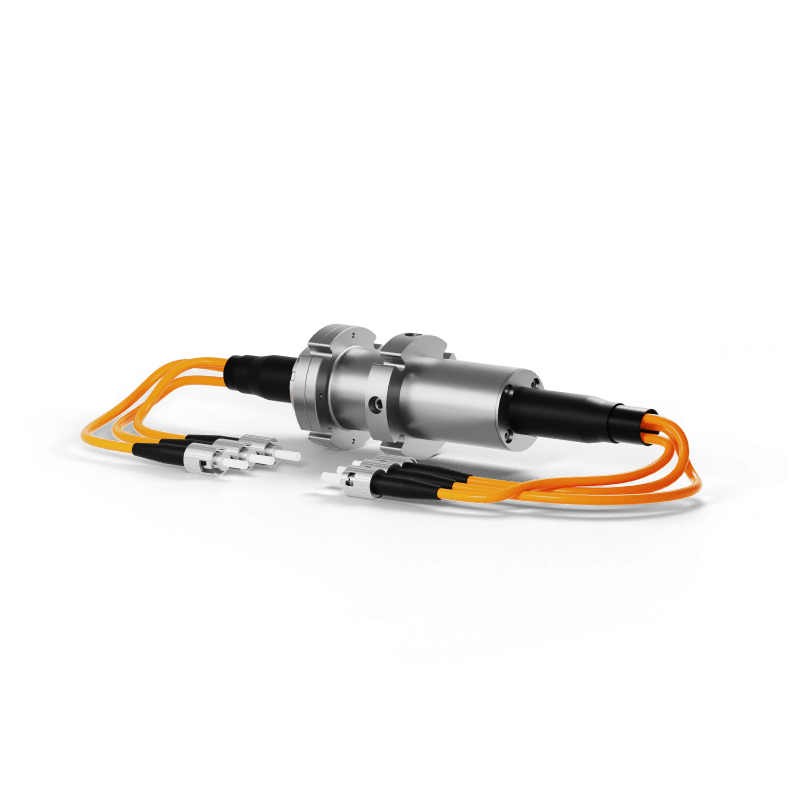

Ultra-Compact Multi-channel Fiber Rotary Joint

Big performance in a small package. The most compact three-channel fiber rotary joint. Unlike MJ2 model, ZJn is capable of handling SM, MM, and mixed fibers. The ZJn promises all standard performance figures of its sister models.

Categories: Fiber Optical Rotary Joints, Multi Channel
  • Description
  • Specifications

ZJn-FORJ Series

Ultra-Compact Multi Channel Fiber Optical Rotary Joint

Our supplier’s relentless drive for small-size rotary joints has resulted in our ZJn series multi-pass Fiber Optic Rotary Joints (FORJs). They have taken place of the MXn series FORJs as the most compact multi-channel products. Up to four independent fiber channels can be simultaneously connected through the ZJn.

The ZJn units are ideal when combined with electrical slip rings or RF rotary joints or when space is tight in general. The extremely small size does not mean that there is any compromise on performance. They still feature low insertion loss, low crosstalk (<-60 dB), and high return loss performance. Singlemode or multimode fibers can be mixed in one device.

Note: All insertion loss and return loss measurements are performed by joining the FORJ to the light source through a fusion splice (without the use of connectors). Insertion loss of all receptacle types of FORJs, such as RST, RFC, and RFCX, are measured with connectors of similar type. Their return loss is not measured.

Quick Specifications
Parameters Values
Wavelength 1270-1610 nm for SM; 850 and 1310 nm for MM
Maximum Speed 400 rpm
Housing Material Stainless Steel
Fiber Types SM or MM w/3 mm jacket (Kevlar/PVC or armor)
Vibration MIL-STD-167-1
IP Rating IP60 (ZJn); IP65 (ZJnL)
Relevant Documents

Which fiber should I choose: Explaining Fiber, Simplex, Duplex, Multiplexer and more!

ZJn-FORJ Series

Technical Specification



Parameters Values
Wavelength 1270-1610 nm for SM; 850 and 1310 nm for MM
Insertion loss <5 dB (typical: 2-3 dB)
Insertion loss ripple ~+/-0.5 to 1 dB
Return loss (SM) >45 dB
Crosstalk >50 dB (typical: 63 dB)
Chromatic dispersion <0.01 ps/nm
Polarization mode dispersion <0.01 ps
Maximum speed 400 rpm
Pulling strength 10 N
Start up torque <1 Nm
Estimated life cycle 100-200 million revolutions
Optical power handling 23 dBm
Working temperature -20 to 65°C
Storage temperature -25 to 75°C
Package style Pigtails
Housing material Stainless steel
Fiber types SM or MM w/3 mm jacket (Kevlar/PVC or armor)
Connector types FC, SC, ST, SMA, LC or /APCs
Dimensions 25 mm dia. x 120 mm length
Weight ~0.5 kg
Vibration MIL-STD-167-1
Mechanical shock MIL-STD-810F
IP rating IP60 (ZJn); IP65 (ZJnL)
